FEATURES OF THE TYM 'T613' 4WD TRACTOR

ENGINE

• Powered by 60hp TYM 4 cylinder Diesel engine
• Quiet running engine certified to meet the stringent Tier III engine and noise emission standards
• 2286cc engine, resulting in high torque for serious work
• Dual dry element air cleaner for Australia's dusty conditions

• 50 litre fuel tank capacity will provide for many working hours
• Easy access from ground level

DRIVELINE

• The tractor weight of 1,742kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

• 12 speed transmission with synchromesh for easy forward and reverse directional changes
• Shuttle shift with lever positioned under steering column
• 3 Ranges with range lever located to operator's right
• 0-33km/h maximum speed

• The heavy duty front axle performs in tough working conditions and handles loads with ease

• Rear axle with diff-lock for difficult traction situations
• 4WD and the diff-lock provides better traction, control and performance
• 4WD mode is controlled by a lever on the left hand side of the operator

• Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

PTO, HYDRAULICS & LINKAGE

• Control for the linkage and hydraulic remotes are on the right-hand side
• Adjustable linkage lift speed

• 3-point linkage with quick attach lower link arms
• Linkage arms with simple pin adjustable sway position
• 3-point linkage with 1500kg lifting capacity gives the tractor great versatility and range of applications

• 2 sets of double-acting hydraulic remotes
• The PTO driveline is a simple and direct design for high efficiency and power
• The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation

• Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

• Adjustable rear wheels to widen track width for steep conditions to improve stability

OPERATOR AREA

• Easy access with grab handles
• Uncluttered flat floor without trip hazards
• Rubber floor mat reduces noise and provides an easy to maintain surface

• Ergonomic design with easy to reach controls
• Easy to read instrument panel
• Combination switch controls lights and indicators
• Digital hour metre display

• Tiltable steering wheel

• Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)

• Adjustable suspension seat for comfort

• Rear working light

• 2 post folding ROPS protection

MAINTENANCE

• Easy access to all maintenance areas including battery
• Pop-up 1 piece bonnet
• Radiator with screen to prevent clogging

OPTIONS

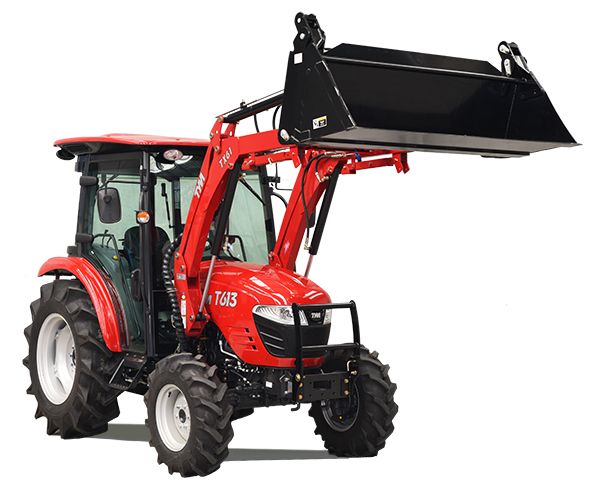

FRONT END LOADER

• Level lift front-end loader ideal for materials handling and utility work around the farm

• Quick detach Euro hitch & loader parking stands
• Full details & specifications on the optional front end loader

TYRES

• Choice of agricultural or industrial tyres

FRONT WEIGHT

• Front weights available
